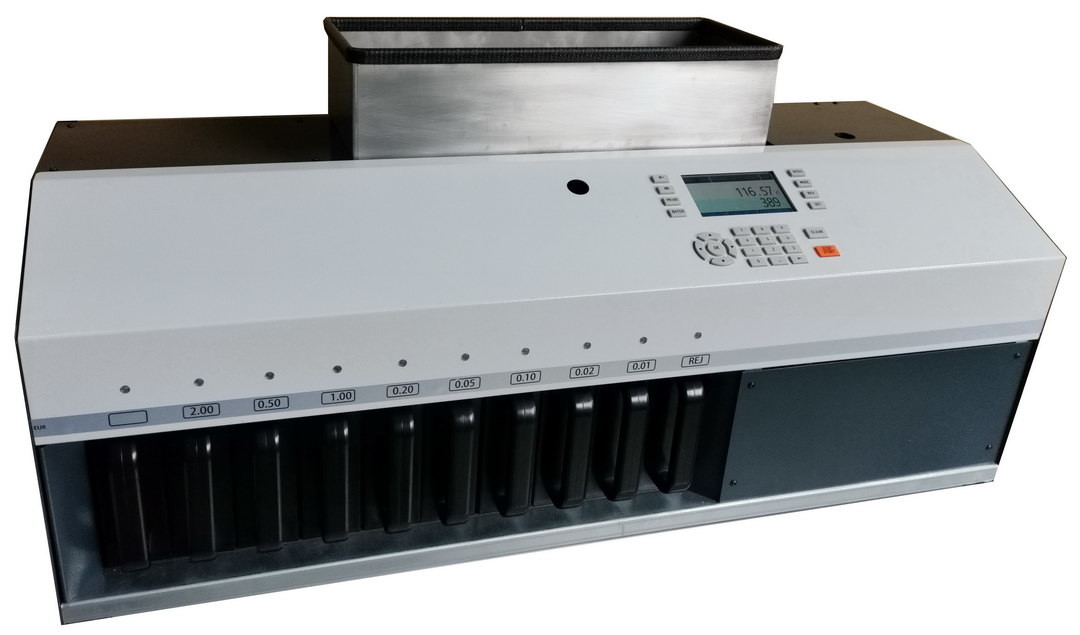

Kobotech LINCE-810 10 channels Value High Speed Coin Sorter Counter counting sorting machine

Product Details:

Place of Origin:	China
Brand Name:	KOBOTECH
Model Number:	Kobotech LINCE-810

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	5 ~ 30 DAYS
Payment Terms:	T/T,L/C

Contact Now

Detailed Product Description

Video link: https://v.youku.com/v_show/id_XNDQ5OTI0NDk1Mg==.html

LINCE-810 coin sorter is the first high speed coin sorting and detecting machine developed in China with the speed at 1800-2300pcs/min.
Based on the dimension and material of coins, specially developed sensors installed on the track detect, count and identify the coins of different diameters and values to realize the authentication detection. The machine can also calculate the numbers, amount and grand numbers and total value of all the coins. The machine can be configured with externalism printer and standard RS232 interface.

Technical Specifications:

Detection Mode:	Comprehensive detection of coins.
Numbers of Sortable Coin Denomination:	9 denominations
Sorting Mechanism:	Belt sorting
Sorting Speed:	1800-2300/min
Hopper Capacity:	12000pcs Mix Counting
Counting Mode:	Continuous Counting Batch Counting Mixed Counting
Sortable Coin Diameter:	14mm-31mm
Sortable Coin Thickness:	1-3.2mm
Data Processing:	calculate the numbers and amount of each denomination and grand numbers and amount of the counted coins and display and save them.
Display:	4.3 inch TFT color screen
Communication port:	2xRS232, 1xUSB, 1xExternal display
Upgrade:	USB disk
Ambient temperature:	10 – 40°C
Humidity:	30 – 75%
Net Weight: Gross weight	50Kg 64kg
Power Consumption:	300W
Power Supply:	230V 50Hz or 115V 60Hz
Dimension	888(L)×330(W)×430(H)mm
